FPV Goggles
FPV Goggles

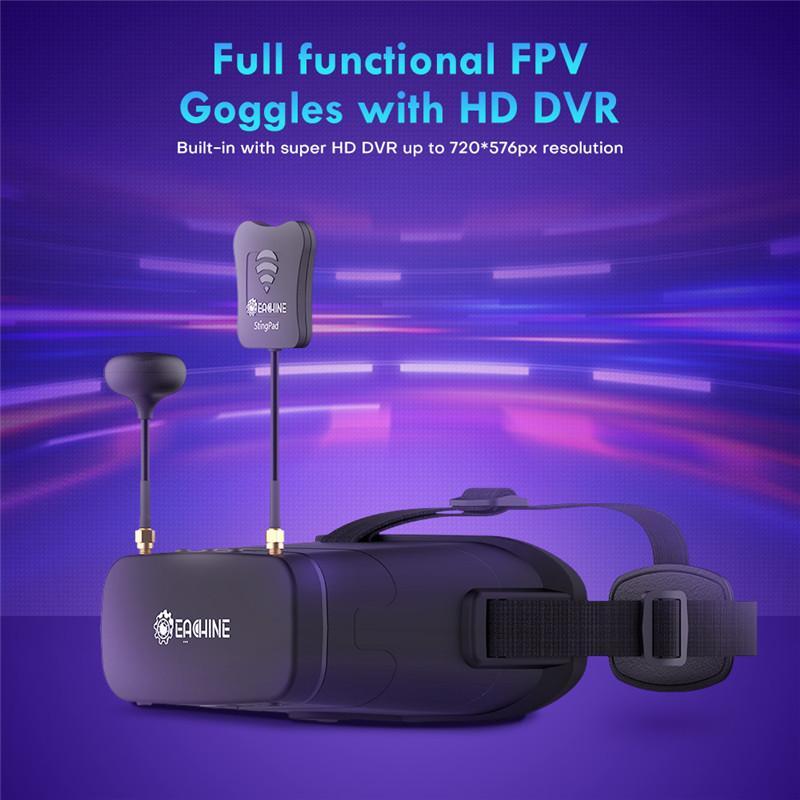

Our FPV Goggles are built-in with very HD DVR up to 720*576px resolution. They have a two system (Display/recor d duo core separated chipsets ) ensure no delay in displaying and no frame lost in recor ding(please use C10 very speed card to ensure the full frame recor ding)
MORE FEATURES:

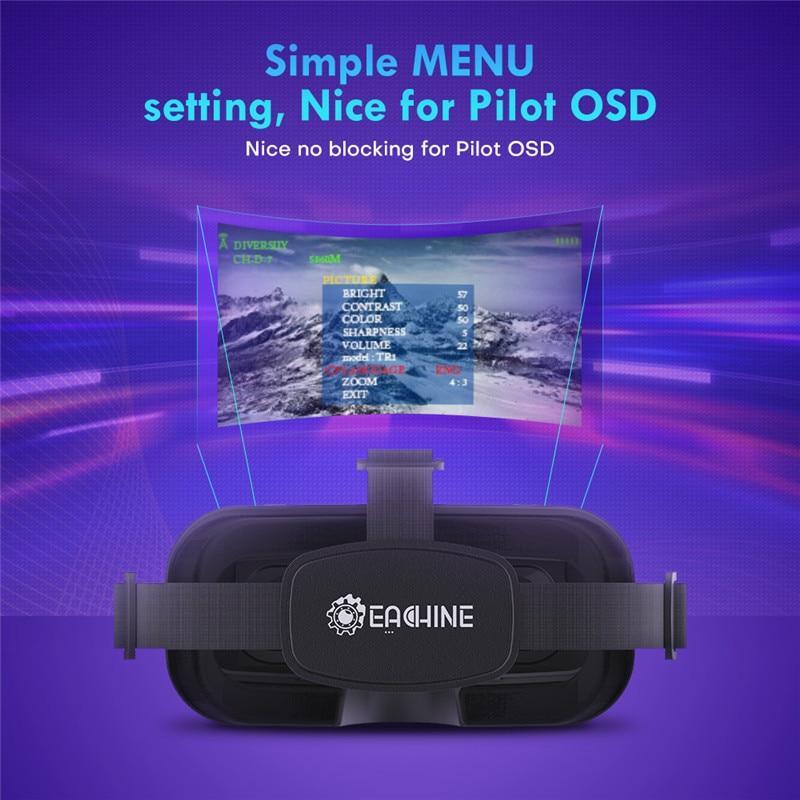

- Work friendly with player-OSD, no block on the important flying OSD information.
- Focal length adjustable design;Room for eyeglasses.
- HD high brightness 3 inch LCD specially tuned for FPV racing;

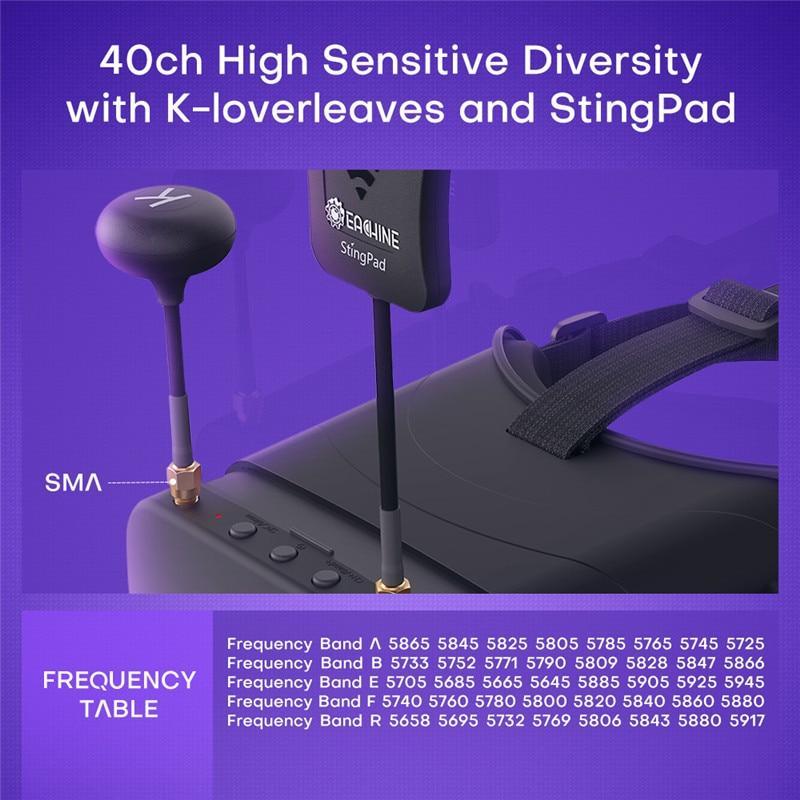

- Diversity function, Built-in very sensitive 5.8GHz 40ch receiver module, with RaceRand.
- Advanced auto-searching function and the working frequency show on screen;
- Built-in 3.8V 2000mAh battery, each full charge offer 2.2 hours working time;
- Wide scope re-charge voltage 5-180V;
- Accept 2S or 3S batteries as back-up po wer source, to prolong the working time;
- Nice ergonomic design and fit different faces;
- very-wide visible angle up to 82 degree;
- 92% transparent lens adopted, no distort, no blur on the edge of screen;
- Light weight 320g with 2.2 hr 2000mAh battery, RTF for any scale racing game;
- 3 Inch 900*600px HD high brightness LCD
|
Appearance |
Dimension: 150*170*80mm Weight: 320g without antenna Belt : three-way adjustable belt |
|
Specification |
Build in DVR recor d up to 720*576px full frame rate video, no frame lost (C10 card required) Re play in MENU Require C10 card to recor d full frame rate |
|
Diversity |
-90dB very sensitiveness in 2pcs RX5808 PRO modules Great performance when two types (Linear and Omni) antennas are used |
|
Display |
Screen size: 3.0 inch Screen resolution: 900*600(No blur after enlarge by the lens) Screen brightness: 600cd/m2 with special high brightness backlight LED for outdoor FPV Ratio : 4:3 View Angle: 140/120 degree(Horizontal/Vertical) |
|
Lens |
3x boost of the video to acquire intense feel-in-there video; 92% transparent rate distort if light; |
|
Varifocal |
20mm focal length adjustable; Multi stop points design for vertical individual user adjust; For more users with different eyesight |
|
Glasses Fit |
Fit for wear with glasses; Glasses Fit Size; 140mm*40mm; Focal length need to be reset when wear glasses |
|
Battery |
Built-in 3.8V/2000mAh battery; Each battery circle offer around 2.2hr working time; 5-18V wide scope recharging voltage scope, typical recharging with 5V/2A Charger : 5V, 2A, DC 2.5mm 2S (7.4 V) /3S(11.1V) battery as back-up po wer t to have long working time. |
Frequencies (5.8GHz, with RaceBand)
| CH | CH 1 | CH 2 | CH 3 | CH 4 | CH 5 | CH 6 | CH 7 | CH 8 |
| GROUP | ||||||||
| A or FR1 | 5865 MHZ | 5845 MHZ | 5825 MHZ | 5805 MHZ | 5785 MHZ | 5765 MHZ | 5745 MHZ | 5725 MHZ |
| B or FR2 | 5733 MHZ | 5752 MHZ | 5771 MHZ | 5790 MHZ | 5809 MHZ | 5828 MHZ | 5847 MHZ | 5866 MHZ |
| C or FR3 | 5705 MHZ | 5685 MHZ | 5665 MHZ | 5645 MHZ | 5885 MHZ | 5905 MHZ | 5925 MHZ | 5945 MHZ |
| D or FR4 | 5740 MHZ | 5760 MHZ | 5780 MHZ | 5800 MHZ | 5820 MHZ | 5840 MHZ | 5860 MHZ | 5880 MHZ |
| R or FR5 | 5658 MHZ | 5695 MHZ | 5732 MHZ | 5769 MHZ | 5806 MHZ | 5843 MHZ | 5880 MHZ | 5917 MHZ |
FPV Goggles
Sale price$245.98
